Formula Calculation

The calculation formula feature enables users to calculate form component values through formulas, providing more powerful dynamic calculation and data processing capabilities, including the following operations:

1. Overview

In form logic design, calculation formulas are a powerful dynamic rule engine that allows developers or business personnel to process form data in real-time through function formulas and set conditional rules based on calculation results (such as field show/hide, required/disabled, value validation, etc.). Its core functionality covers numeric operations, text processing, time calculations, collection operations, and logical judgments, meeting dynamic interaction needs in complex business scenarios.

2. Configuration

Using calculation formulas is similar to using Excel function formulas, supporting calculations using fields already added to the form.

Example: The form has contract amount and received amount fields, and needs to calculate the unpaid amount based on these two fields.

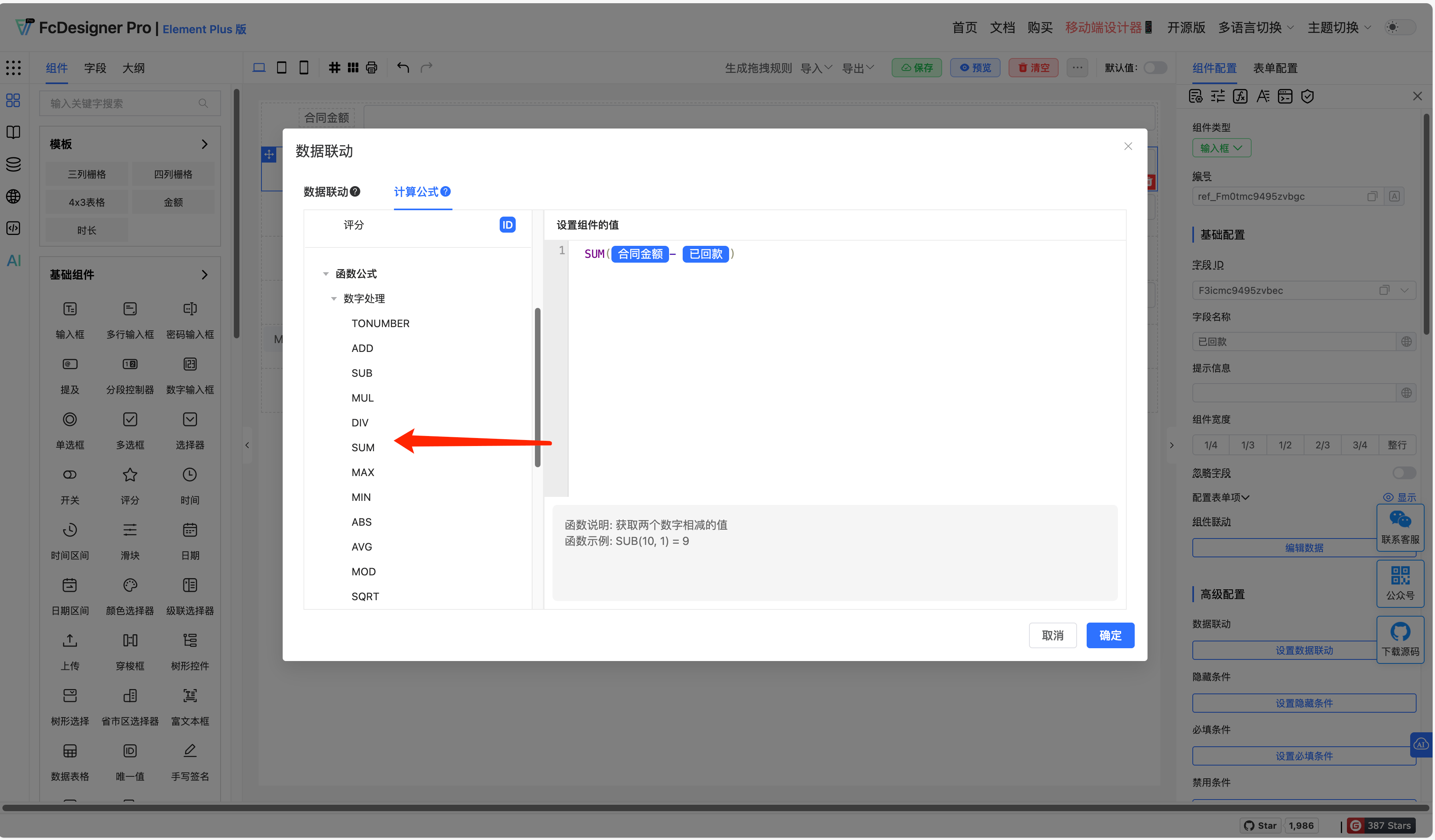

Step 1: First select the SUM function formula for calculation, click the function to insert the function formula into the right content area;

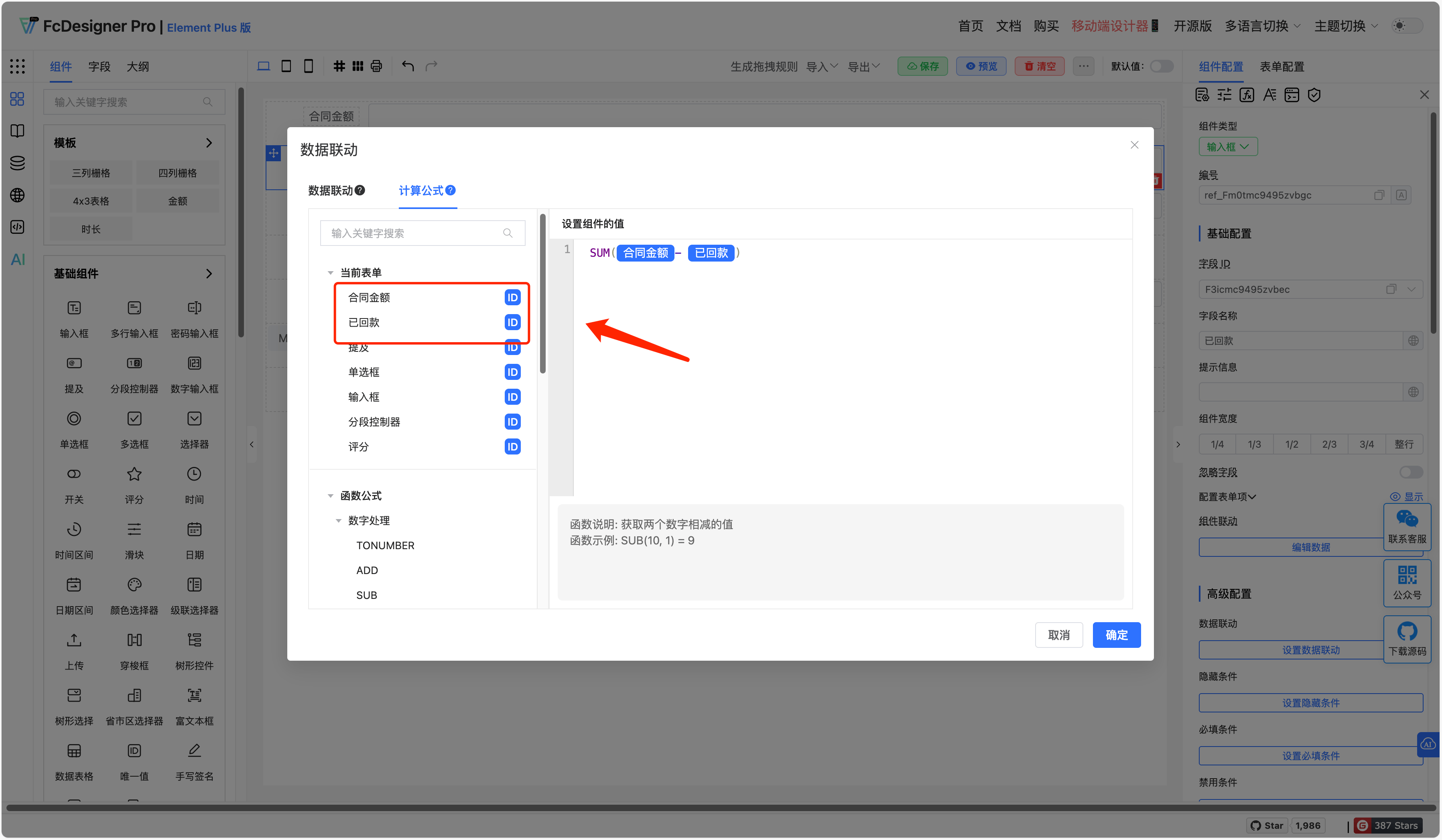

Step 2: Select the contract amount and received amount fields, and manually type the - sign. A simple calculation formula is now complete!

You can create more complex formulas using the same approach.

3. How to View Function Descriptions

When hovering the mouse over a function, you can view the function description and example.

4. Function Reference

Function Name	Description	Example
TONUMBER	Convert parameter to number	TONUMBER("1.5") = 1.5, TONUMBER("2.4e") = 2.4, TONUMBER("ABC") = 0
ADD	Get the sum of two numbers	ADD(1, 2) = 3
SUB	Get the difference of two numbers	SUB(10, 1) = 9
MUL	Get the product of two numbers	MUL(2, 2) = 4
DIV	Get the quotient of two numbers	DIV(10, 2) = 5
SUM	Get the sum of values in a collection	SUM(1,2,3) = 6, SUM([5, 6, 7]) = 18
MAX	Get the maximum value in parameter list	MAX(1, 5, 10) = 10
MIN	Get the minimum value in parameter list	MIN(1, 5, 10) = 1
ABS	Get the absolute value of a number	SUM(1,2,3) = 6, SUM([5, 6, 7]) = 18
AVG	Get the average of parameter list	Get the average of parameter list
MOD	Get the remainder of two numbers	MOD(10, 3) = 1
SQRT	Get the positive square root of a number	SQRT(9) = 3
POWER	Get the power of a specified number	POWER(2, 4) = 16
RAND	Round a decimal to specified digits	RAND() = 0.75348173001531
PI	Get pi	PI() = 3.141592653589793
ROUND	Round a decimal to specified digits	ROUND(3.149, 2) = 3.15, ROUND(3.149) = 3
FLOOR	Get the floor value of a specified number	FLOOR(1.93) = 1
CEIL	Get the ceiling value of a specified number	CEIL(1.93) = 2
FIXED	Keep a decimal to specified decimal places	FIXED(1.93, 1) = 1.9
TOCHINSESAMOUNT	Get the Chinese uppercase amount of a specified number	TOCHINSESAMOUNT(32.14) = "叁拾贰元壹角肆分"
test	Example of extended custom calculation function	test(val) == !!val
STARTSWITH	Check if string starts with specified string	STARTSWITH("ABCDEF","ABC") = true, STARTSWITH("ABCDEF","AD") = false
SLICELEFT	Get a string of specified length from the start	SLICELEFT("ABCDE", 3) = "ABC"
SLICERIGHT	Get a string of specified length from the end	SLICERIGHT("ABCDE", 3) = "CDE"
TOLOWER	Convert all uppercase letters in string to lowercase	TOUPPER("ABCD") = "abcd"
TOUPPER	Convert all lowercase letters in string to uppercase	TOUPPER("abcd") = "ABCD"
INCLUDES	Check if string contains specified string	INCLUDES("ABCD", "BC") = 1, INCLUDES("ABCD", "E") = -1
CONCAT	Concatenate all parameters, return concatenated string	CONCAT("ABC", "DEF") = "ABCDEF"
REPLACE	Replace part of text in string with different text, only replace first match	REPLACE("AbAc","A","1") = "1bAc"
REPLACEALL	Replace part of text in string with different text, replace all matches	REPLACEALL("AbAc","A","1") = "1b1c"
TRIM	Remove spaces before and after string	TRIM("\t\n A BC \t\n") = "A BC"
NOW	Get current time	NOW() = "2024-03-15 12:08:31"
TODAY	Get today's date	TODAY() = "2024-03-15"
YEAR	Get year of specified date	YEAR("2024-03-15 12:08:31") = 2024
MONTH	Get month of specified date	SUBYEAR("2024-03-15 12:08:31", 2) = 2022-03-15 12:08:31, SUBYEAR("2024-03-15 12:08:31", 3, "YYYY-MM-DD") = 2021-03-15
DAY	Get day of specified date	SUBYEAR("2024-03-15 12:08:31", 2) = 2022-03-15 12:08:31, SUBYEAR("2024-03-15 12:08:31", 3, "YYYY-MM-DD") = 2021-03-15
HOUR	Get hour of specified date	HOUR("2024-03-15 12:08:31") = 12
MINUTE	Get minute of specified date	MINUTE("2024-03-15 12:08:31") = 8
SECOND	Get second of specified date	SECOND("2024-03-15 12:08:31") = 31
ADDYEAR	Add years to specified date	ADDYEAR("2024-03-15 12:08:31", 2) = 2026-03-15 12:08:31, ADDYEAR("2024-03-15 12:08:31", 3, "YYYY-MM-DD") = 2027-03-15
SUBYEAR	Subtract years from specified date	SUBYEAR("2024-03-15 12:08:31", 2) = 2022-03-15 12:08:31, SUBYEAR("2024-03-15 12:08:31", 3, "YYYY-MM-DD") = 2021-03-15
ADDMONTH	Add months to specified date	ADDMONTH("2024-03-15 12:08:31", 2) = 2024-05-15 12:08:31, ADDMONTH("2024-03-15 12:08:31", 10, "YYYY-MM-DD") = 2025-01-15
SUBWEEK	Subtract weeks from specified date	SUBWEEK("2024-03-15 12:08:31", 2) = 2024-03-01 12:08:31, SUBWEEK("2024-03-15 12:08:31", 4, "YYYY-MM-DD") = 2024-02-16
ADDMINUTE	Add minutes to specified time	ADDMINUTE("2024-03-15 12:08:31", 30) = 2024-03-15 12:38:31, ADDMINUTE("2024-03-15 12:08:31", 55, "HH:mm:ss") = 13:03:31
SUBMINUTE	Subtract minutes from specified time	SUBMINUTE("2024-03-15 12:08:31", 30) = 2024-03-15 11:38:31, SUBMINUTE("2024-03-15 12:08:31", 55, "HH:mm:ss") = 11:13:31
ADDSECOND	Add seconds to specified time	ADDSECOND("2024-03-15 12:08:31", 20) = 2024-03-15 12:08:51, ADDSECOND("2024-03-15 12:08:31", 40, "HH:mm:ss") = 12:09:11
SUBSECOND	Subtract seconds from specified time	SUBSECOND("2024-03-15 12:08:31", 20) = 2024-03-15 12:08:11, SUBSECOND("2024-03-15 12:08:31", 40, "HH:mm:ss") = 12:07:51
DIFFDAYS	Get the number of days between two dates	DIFFDAYS("2024-01-15","2024-03-15") = 60
DIFFHOURS	Get the number of hours between two times, keep two decimal places	DIFFHOURS("2024-01-15 12:00:00", "2024-01-16 15:00:00") = 27, DIFFHOURS("2024-01-15 12:00:00", "2024-01-15 12:30:00") = 0.5
DIFFMINUTES	Get the number of minutes between two times	DIFFMINUTES("2024-01-15 12:00:00", "2024-01-15 12:30:00") = 30
TIMESTAMP	Get timestamp of specified date	TIMESTAMP("2024-03-15 12:08:31") = 1710475711000
IN	Check if second parameter is in collection	IN([1,2,3,4], 4) = true, IN([1,2,3,4], 5) = false
LEN	Get length of specified collection	LEN(["a", "b", "c"]) = 3
UNION	Remove duplicates from collection/parameters, return deduplicated collection	UNION(1, 3, 5, 1, 4, 3) = [1, 3, 5, 4], UNION([1, 2, 3, 1, 2, 3]) = [1, 2, 3]
COLUMN	Get specified field from sub-form and return collection	COLUMN([{key: 1}, {key: 2}, {key: 3}],"key") = [1, 2, 3], COLUMN([[{key: 1}, {key: 2}], [{key: 3}, {key: 4}]], "key") = [1, 2, 3, 4]
VALUE	Get specified field from grouped form	VALUE({key: 1}, "key", 2) = 1, VALUE({key: 1}, "value", 2) = 2, VALUE({list: {key: 1}}, "list.key") = 1
INTERSECTIONSET	Get intersection of two sets	INTERSECTIONSET([1, 3, 5], [1, 4, 3]) = [1, 3]
LIST	Get collection of all parameters	LIST([1, 3, 5], [1, 4, 3]) = [[1, 3, 5], [1, 4, 3]]
IF	Check if a condition is met, if yes return second parameter, otherwise return third parameter	IF(false, 1, 0) = 0, IF(true, 1, 0) = 1
AND	Link expressions with "and", return true when all expressions are true, otherwise return false	AND(true, true) = true, AND(true, false) = false
OR	Link expressions with "or", return true when one expression is true, otherwise return false	OR(false, false) = false, OR(false, true) = true
CASE	Check if one or more conditions are met, return value of first met condition	CASE(IN([1,2,3,4], 5), 1, IN([1,2,3,4], 2), 2) = 2
NOT	Get opposite value of a logical value	NOT(true) = false, NOT(false) = true
EQ	Check if two values are equal	EQ(100, 100) = true, EQ(100, 90) = false, EQ(100, "100") = false
NE	Check if two values are not equal	NE(100, 90) = true, NE(100, 100) = false, NE(100, "100") = true
GE	Check if first value is greater than or equal to another value	GE(100, 90) = true, GE(100, 100) = true, GE(100, 110) = false
GT	Check if first value is greater than another value	GT(100, 90) = true, GT(100, 100) = false, GT(100, 110) = false
LE	Check if first value is less than or equal to another value	LE(100, 90) = false, LE(100, 100) = true, LE(100, 110) = true
LT	Check if first value is less than another value	LT(100, 90) = false, LT(100, 100) = false, LT(100, 110) = true
TRUE	Return logical value true	TRUE() = true
FALSE	Return logical value false	FALSE() = false
DEFAULT	Check first parameter, if empty return second parameter, otherwise return first parameter	DEFAULT("#FF7271", "#000") = "#FF7271", DEFAULT("", "#000") = "", DEFAULT(null, "#000") = "#000"
EMPTY	Check if parameter is empty	EMPTY("") = true, EMPTY([]) = true, EMPTY("0") = false
NOTEMPTY	Check if parameter is not empty	NOTEMPTY("") = false, NOTEMPTY([]) = false, NOTEMPTY("0") = true
ISNUMBER	Check if parameter is a number	ISNUMBER("2.34") = true, ISNUMBER("2.4e") = false
